Cartographer V4 - AIO - USB & CAN
⚠️ WARNING ⚠️
Choking Hazard – Small Parts for most items on this site.
Not for children under 3 years old.

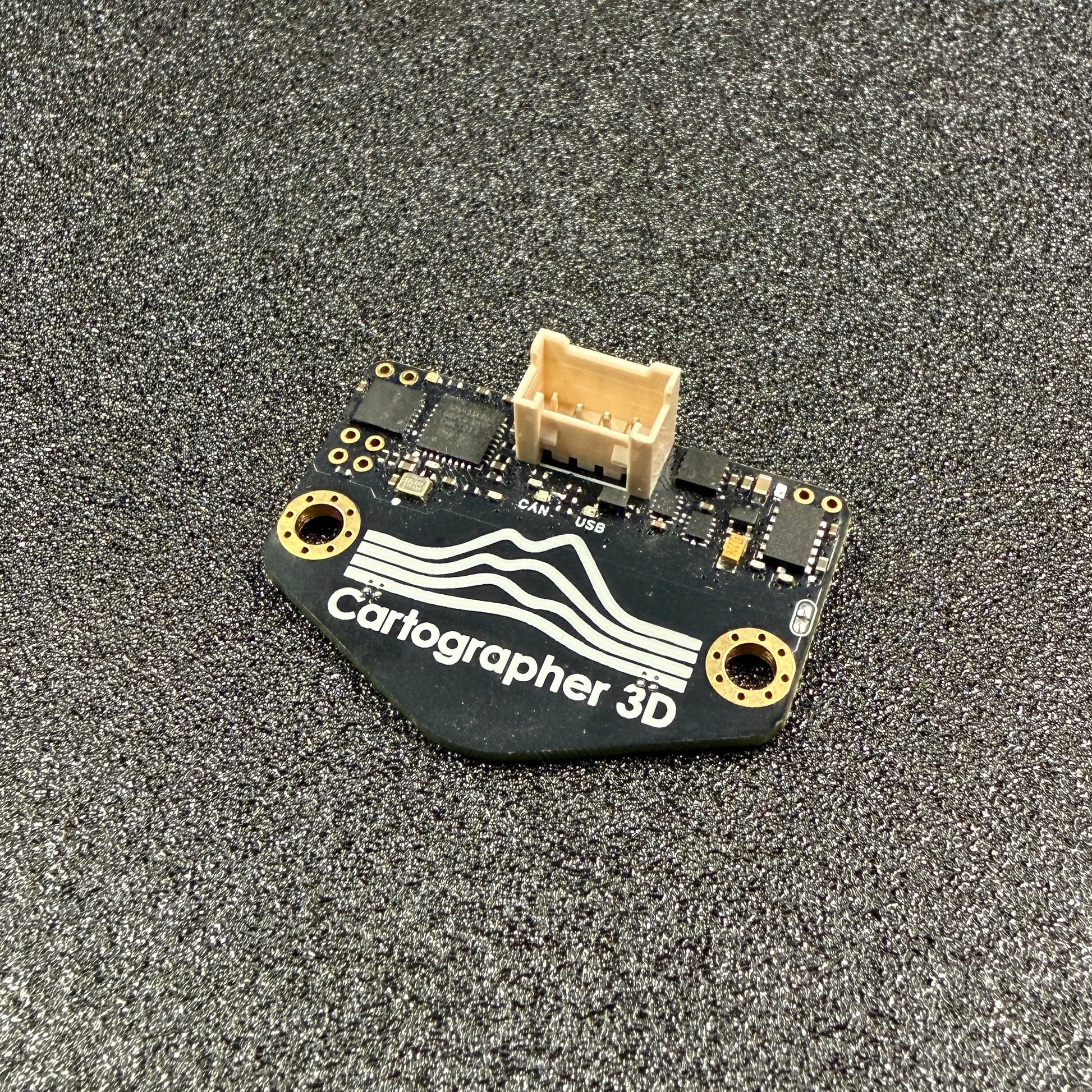

Introducing the Cartographer Probe v4: The Ultimate Eddy Current Displacement Sensor for 3D Printers
THIS PROBE WORKS WITH BOTH USB and CAN SETUPS.
This probe will ship with both USB and CAN Cables and will be flashed with USB Firmware by default, you can change this to CAN easily
What is new?
Cartographer V4 not only introduces a new All in One Design but improved thermal and electrical reliability.
- Faster and more powerful MCU Rated to 125oC*
- Simple and Reliable All in One Design**
- Increased Accuracy with refined coil routing and design
- Updated and Improved USB Cable
- No more bridging pads for DFU mode (we gave you holes)
* Although most components are rated up to 125oC, we do not recommend going above 110oC ambient temperature.
** Please note, our design is slightly different to our competitor's H variety, please check the CAD. V4 is compatible with a majority of Cartographer V3 mounts.
This latest version allows for you to switch between using either CAN or USB via Firmware, no need to re-solder anything.
Cartographer and CAN
CAN provides easy and simple wiring, no need to run multiple wires from your MCU, or use one of your limited number of USB ports, just tap into your Toolheads CAN output, and enjoy a seamless setup.
It is recommended to run your CAN network at a baud rate of 1,000,000.
Input Shaping (adxl345)
with the probes proximity to your printer's nozzle, the adxl345 provides a higher level of accuracy when running input shaper than motor mounted alternatives.
Specs:
- MCU: stm32g431
- Connectivity: CAN & USB via 4 pin Genuine Molex Sherlock connector.
- Firmware Requirement: Klipper
-
Temperature Rating: It is recommended to operate Cartographer v4 in no higher than 110oC, many components are rated higher than that.
The only component not rated for high temperature is the ADXL345, this was a choice to keep the price down, we have observed no issues running ADXL345 at higher temperatures, though we don't recommend relying on it for input shaping after prolonged use over 85.
What is included?
- 1 x Cartographer Probe V4
- 1 x 1.8m USB Cable (USB-A to Genuine Molex Sherlock)
- 1 x 18cm CAN Cable (DuPont to Genuine Molex Sherlock)
- 1 x Silicone Nozzle Brush
- 1 x Cartographer V4 Fastener Pack
Benefits:
- Optimize Print Quality: Accurate bed leveling leads to higher quality prints—say goodbye to imperfections and defects.
- Save Time: Faster scans and fewer print retries mean you complete your projects in record time.
- Resource Efficiency: Accurate first-time prints mean less waste of filament and other materials.
- Peace of Mind: Knowing your printer’s bed is perfectly leveled allows you to focus on your creative journey, not on troubleshooting.
Which version should I buy?
- Standard Edition - Ideal for Voron StealthBurner, Annex etc.
- Low Profile Edition - Perfect for VzBot and RatRig Printers
Currently we do not support delta printers.
Take Your 3D Printing to the Next Level with Cartographer!
No more guesswork, no more wasted time, and most importantly, no more compromise on quality. Get your Cartographer Probe today and step into a world of 3D printing like you’ve never experienced before.
